Features
- suitable for all conventional flat ribbon cables at a pitch of 1.27 mm
- useable cable: AWG26 solid wire, AWG28 stranded wire
- fit with KSG 185 connector housings
- several locking accessories are available on request
- suitable for ERNI TMC IDC male- and female connectors
| Specification: | |
|---|---|
| Temperature range: | -55°C up to +1255°C |
| Air and creepage distance: | ≥ 0.9 mm |
| Withstand voltage: | |
| Contact/Contact: | 750 Veff |
| Contact/Ground: | 1200 Veff |
| Insulation resistance: | ≥ 5 x 109Ω |
| Contact resistance: | ≤ 25mΩ |
| Insulator: | PBT 30% GV, PC 30% GV |
| Contact material: | |
| Base material: | Copper alloy |
| Mating area: | gold plated |
| Termination area: | Sn |
| Metal shell material: | |
| Base material: | St |
| Plating: | Sn |
| Operating life: | ≥ 250 Mating cycles |
| Item: | No. of contacts: |
|---|---|

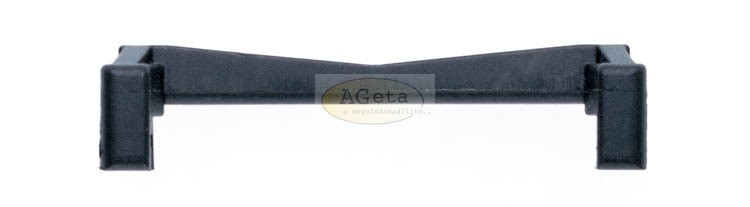

| E004687 | 9 |
További információk
| Minimálisan rendelhető mennyiség | 1.0000 |
|---|---|
| Gyártó | ERNI Electronics |
