Different versions of connector housings for ERNI TMC connectors.

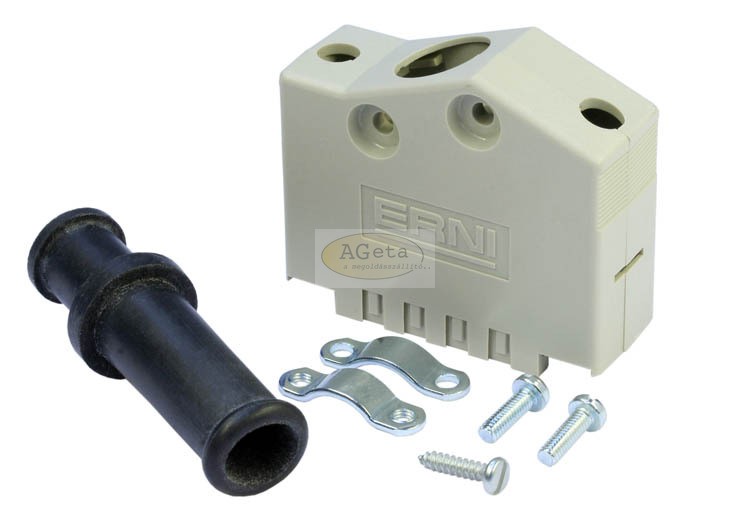

Kit of cable connector housing KSG 185 grey with integrated coding.
A wide range of accessories for locking and coding are available on request!
- fully insulated housing
- two-shell design to facilitate assembly
- reliable strain relief with strain relief clamp
- cable sleeves and blind plugs included
- all parts needed to mount the housing are supplied
- various types of locking such as snap-in, slide and screw locking
Kit of cable connector housing KSG 185 grey with integrated coding.
A wide range of accessories for locking and coding are available on request!
| Housing material: | PC 30% glass-filled, grey RAL 7032 |
| Cable outlet 9 and 15 pin: | 1 x 75° |
| Cable outlet 25 pin: | 2 x 75° |
| Minimum order quantity: | 1 pcs as kit in polybag |
| Dimensions (mm) |
| Item: | No. of contacts: | a: | c: | d: |
|---|---|---|---|---|
| E423554 | 9 | 25.0 | 33.0 | 42.0 |
További információk
| Minimálisan rendelhető mennyiség | 1.0000 |
|---|---|
| Gyártó | ERNI Electronics |
