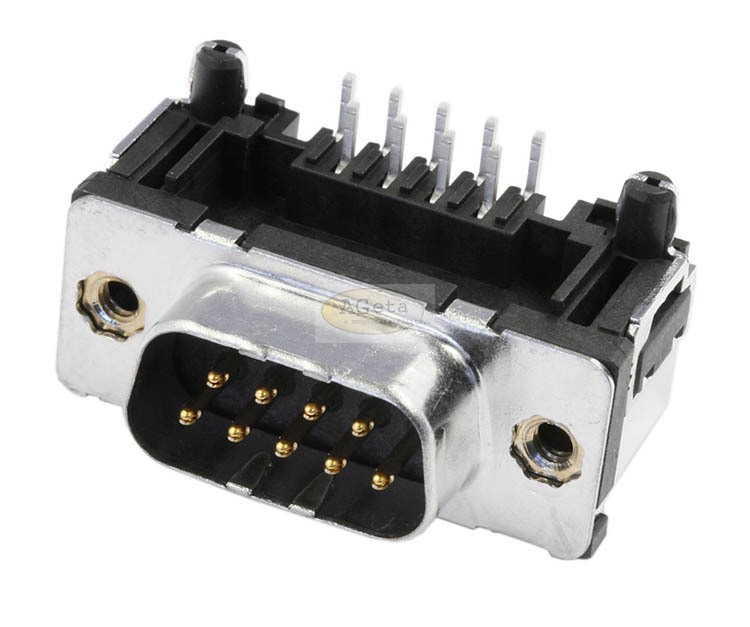

ERNI THR-D-Sub connectors are characterized by the following features:
Assembly height 7.3 mm, with thread UNC 4/40, tray packaging
- Fully automatic processing due to an integral suction area and tray packaging or tape & reel packaging
- Suitable for vision systems due to high-contrast image with regard to contacts and insulating bodies
- Layout is compatible with the pressfit D-Subs, i.e. a pressfit or soldered D-Sub can be replaced by an ERNI THR-D-Sub on an existing series-produced assembly without changing the layout.
Assembly height 7.3 mm, with thread UNC 4/40, tray packaging
| Specification: | |
|---|---|
| Air- and creepage distance: | 1.2 mm |
| Insulator: | High temperature plastic LCP |
| Contact: | Copper alloy |
| Contact plating: | Contact area gold plated |
| Termination area tin plated | |
| Front plate: | Sn over St |
| Metal bracket: | Copper alloy, tin plated |
| Minimum order quantity: | 1 pcs |
| Dimensions (mm) |
| Item: | No. of contacts: | A: | B: | C: | PU: |
|---|---|---|---|---|---|
| E154208 | 15 | 39.1 | 25.1 | 33.3 | 24 |
További információk
| Minimálisan rendelhető mennyiség | 1.0000 |
|---|---|
| Gyártó | ERNI Electronics |
