Today`s printed circuit board designs demand flexible and economic connector concepts. For our customers, this means the availability of complete ranges with all termination technologies at an attractive prices.

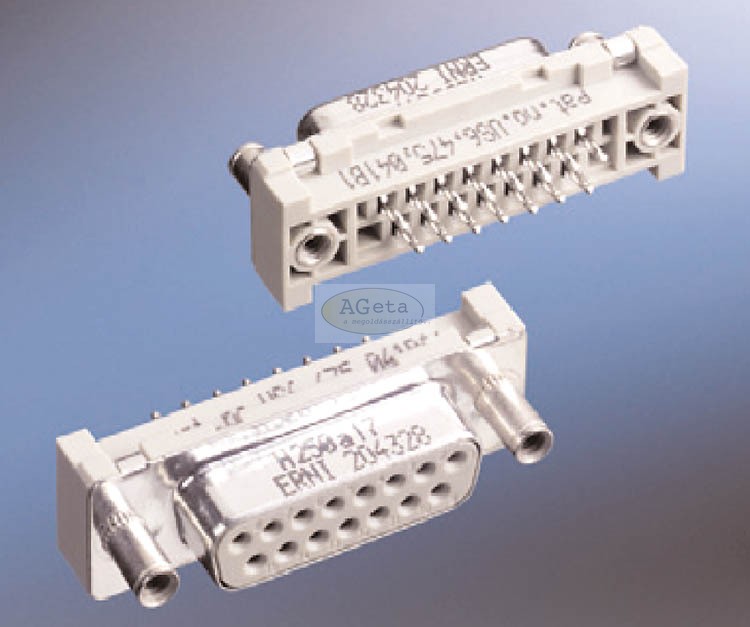

There are many reasons for using pressfit D-Sub connectors. Soldering or automatic fitting is not always possible, e.g. in the case of backplanes.
The integral accessories are a unique feature. The problem of screws or nuts turning when cable housings are used is finally a thing of the past.
Fully automatic processing is also possible due to supply in trays.
Metal bracket with thread UNC 4/40
There are many reasons for using pressfit D-Sub connectors. Soldering or automatic fitting is not always possible, e.g. in the case of backplanes.
The integral accessories are a unique feature. The problem of screws or nuts turning when cable housings are used is finally a thing of the past.
Fully automatic processing is also possible due to supply in trays.
Metal bracket with thread UNC 4/40
| Specification: | |
|---|---|
| Materials: | |
| Contact: | Cu alloy |
| Insulator: | PBT |
| Front plate: | St |
| Metal bracket: | Cu alloy |
| Finish: | |
| Contact: | Contact area: gold plated |
| Termination area: Sn | |
| Front plate: | Sn |
| Metal bracket: | Sn |
| Minimum order quantity: | 1 pcs |
| Dimensions (mm) |
| Item: | No. of contacts: | A: | B: | C: | PU: |
|---|---|---|---|---|---|
| E194059 | 9 | 31.0 | 16.4 | 25.0 | 48 |
További információk
| Minimálisan rendelhető mennyiség | 1.0000 |
|---|---|
| Gyártó | ERNI Electronics |
