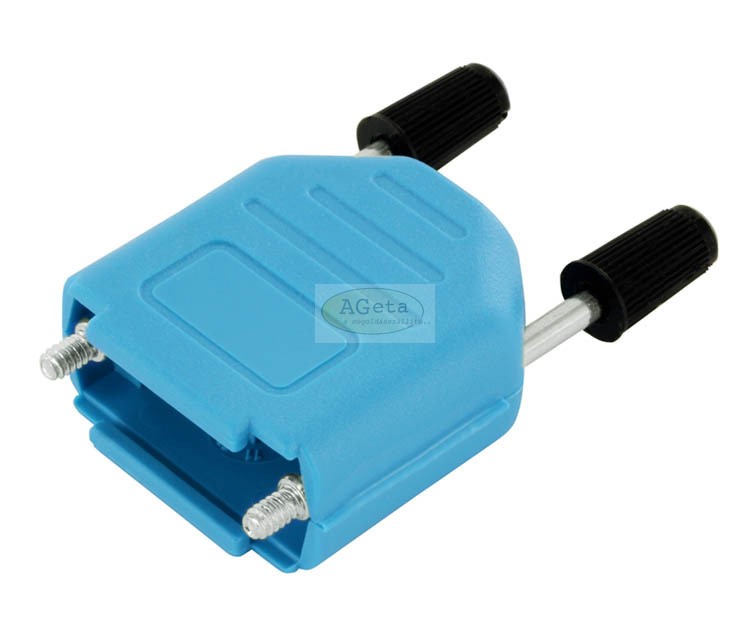

High quality and easy to handle housings for any common D-Sub connectors.
Features:
- Cable entry on top
- suitable for cable diameter between 3.0 up to 11.5 mm because of integrated cable clamp
- Quick-snap locking system
- including UNC 4-40 thumbscrews (M2.5 and M3 available on request)
- available in different colours
- single packed (bulk available on request)
- Company logo can be molded on request (minimum order = 3.000 pcs.)
The colours beige and white are available on request!
| Specification: | |
|---|---|
| Material: | Polyamide UL94HB |
| Temperature range: | -55°C bis +110°C |
| Standard colours: | black, light grey, red, blue, yellow, green |
| Extra colours: | DEC grey, white |
| Available sizes: | 9 to 50 pin |
| Dimensions (mm) |
| Item: | No. of contacts: | Colour: | A: | B: | Packing: |
|---|---|---|---|---|---|
| DPPK09BK | 9 | blue | 31.5 | 34.0 | Single packed |
További információk
| Minimálisan rendelhető mennyiség | 1.0000 |
|---|---|
| Gyártó | Encitech Connectors AB |
