Részletek

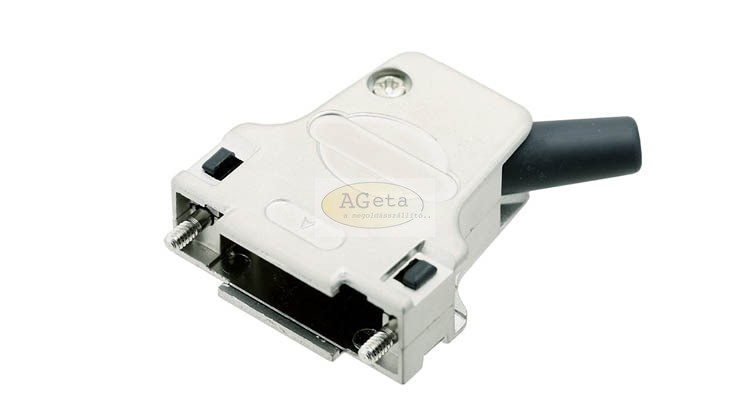

High quality screwable diecast housings for any common D-Sub connectors
Equivalent to FCT housing series FMK
Features:
- cable entry at side
- re-openable
- extended inner chamber, suitable with special contacts
- easy assembly with premounted locking screws
| Specification: | |
|---|---|
| Material: | Zinc, nickel plated |
| Temperature range: | -40°C up to +105°C |
| Dimensions (mm) |
| Item: | No. of contacts: | A: | B: | C: | Cable diameter: | Packing: |
|---|---|---|---|---|---|---|
| D45ZF09RGK | 9 | 31,6 | 39.5 | 15.2 | max. 9.5 mm | single packed |
További információk
| Minimálisan rendelhető mennyiség | 1.0000 |
|---|---|
| Gyártó | Encitech Connectors AB |
