| SPECIFICATION: | |
|---|---|
| Impedance: | 50 Ohm |
| Voltage rating: | 335 V RMS max. |
| Insulation resistance: | 5000 MΩ min. |
| Contact resistance: | Inner conductor 5 mΩ max. |
| Outer conductor 2.5 mΩ max. | |
| Dielectric voltage: | 1000 V RMS max. |
| MATERIAL: | |
| Insulator: | Teflon |
| Inner conductor: | Brass |
| Shell: | Brass |
| FINISH: | |
| Inner conductor: | Gold plated 2 ľ" |
| Outer conductor: | Gold plated 2 ľ" |
| Ferrule: | Gold plated 2 ľ" |
| HANDLING: | |
| Packing: | Bag |
| TOLERANCE: | |
| .X | ± 0.40 |
| .XX | ± 0.20 |

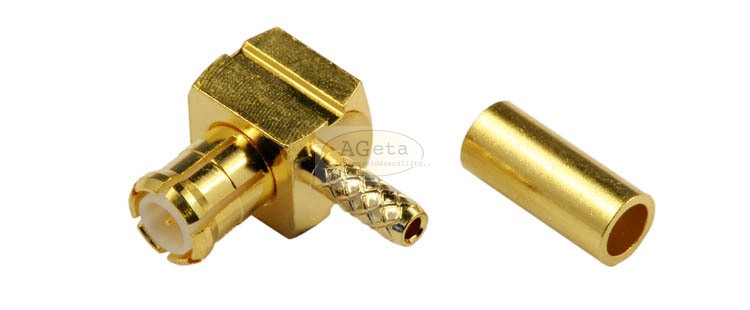

| Item: | for cable: | Version: | Termination: |
|---|---|---|---|
| MCX2MC | RG 178 | gold plated | solder / crimp |
További információk
| Minimálisan rendelhető mennyiség | 1.0000 |
|---|---|
| Gyártó | econ connect |
