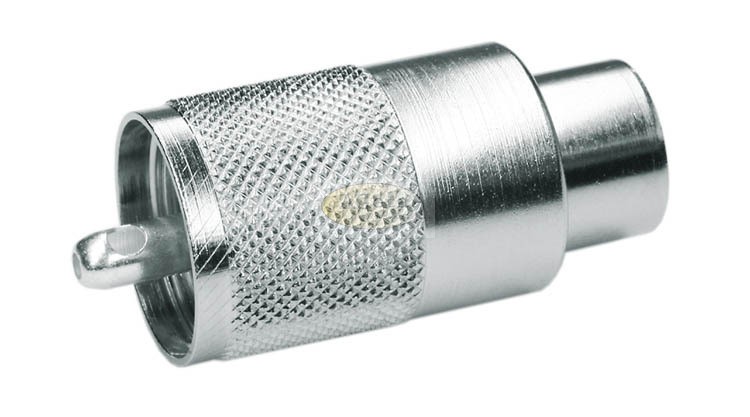

The UHF series is a low cost, low frequency connector with a screw coupling. The maximum usable frequency is limited to 200 MHz, as the impedance of the connector is not controlled.
Applications for the UHF connectors are for low-frequency communication equipment.
Applications for the UHF connectors are for low-frequency communication equipment.
| Specification: | |
|---|---|
| Mechanical characteristics: | |
| Materials: | |
| Contacts: | CuZn39Pb3 |
| Other metal parts: | CuZn39Pb3 |
| Insulators: | PTFE, POM |
| Finish: | |
| Inner conductor: | Cu2Ag5 |
| Outer conductor: | Cu2Ni5 |
| Other metal parts: | Cu2Ni5 |
| Electrical characteristics: | |
| Contact resistance: | |
| Inner conductor: | ≤ 5 mΩ |
| Outer conductor: | ≤ 5 mΩ |
| Insulation resistance: | ≥ 5 GΩ |
| Withstand voltage: | 2000 Veff / 50 Hz |
| Operating voltage: | ≤ 750 Veff / 50 Hz |
| Frequency range up to: | 200 MHz |
| Thermal and climatic characteristics: | |
| Climatic test category according to DIN IEC 68 Teil 1: | 40/070/21 |
| Cable group: | Cable type: |
|---|---|
| G1 (RG58C/U) | 7806A Belden, 9907 Belden, KX 15, WCX195, RG58C/U |
| G2 (RG59B/U) | 0.6/3.7, 0.6L/3.7, 8241 Belden, 3C-2V, KX 6A, RG59B/U |
| Dimensions (mm) |
| Item: | for Cable group; Cable: | Termination: | Insulation: |
|---|---|---|---|
| J01040B0604 | G1, G2 | solder / solder | PTFE |
További információk
| Minimálisan rendelhető mennyiség | 1.0000 |
|---|---|
| Gyártó | Telegärtner |
