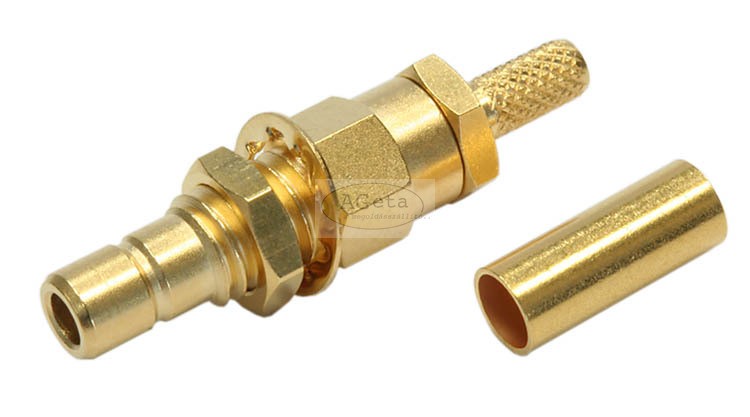

The SMB series is a coax connector with snap-on coupling, allowing rapid but secure connections, and is usuable up to 4 GHz.
The impedance is controlled at 50 ohm. SMB connectors find applications in all types of electronic equipment.
The impedance is controlled at 50 ohm. SMB connectors find applications in all types of electronic equipment.
| Specification: | |
|---|---|
| Mechanical characteristics: | |
| Operating life: | ≥ 100 Mating cycles |
| Insertion force: | 14 N typ. |
| Materials: | |
| Spring contacts: | CuBe2 |
| Crimp ferrule: | SF Cu w |
| Serrated lock washers: | CuSn6 |
| Other metal parts: | CuZn39Pb3 |
| Insulators: | PTFE |
| Gaskets: | Silicon |
| Finish: | |
| Inner conductor: | Cu1Ni2Au1,27 |
| Outer conductor: | Gold plated Cu1Ni2Au0.8 |
| Electrical characteristics: | |
| Contact resistance: | |
| Inner conductor: | ≤ 5 mΩ |
| Outer conductor: | ≤ 2.5 mΩ |
| Insulation resistance: | ≥ 1GΩ |
| Withstand voltage: | 750 V / 50 Hz |
| Return loss: | addicted to version |
| Frequency range up to: | 4 GHz |
| Thermal and climatic | characteristics: |
| Climatic test category according to DIN IEC 68: | 55/155/21 |
| Cable group: | Cable type: |
|---|---|
| G7 (RG316/U) | KX 22A, KX 3B, RG174/U, RG316/U, RG188A/U |
| Dimensions (mm) |
| Item: | for Cable group; Cable: | Termination: |
|---|---|---|
| J01160A0101 | G7 | solder / crimp |
További információk
| Minimálisan rendelhető mennyiség | 1.0000 |
|---|---|
| Gyártó | Telegärtner |
