| Specification: | |
|---|---|
| Mechanical characteristics: | |
| Operating life: | ≥ 500 Mating cycles |
| Materials: | |
| Spring contacts: | CuBe2; CuPb1,15Ni1(C97) |
| Outer conductor: | CuZn39Pb3 |
| Other metal parts: | 8282CuZn39Pb3 |
| Insulators: | PTFE, PE |
| Gaskets: | Silicon |
| Finish: | |
| Inner conductor: | Cu1Ni2Au0,8 |
| Outer conductor: | Cu2Ni5 |
| Other metal parts: | Cu2Ni5 |
| Electrical characteristics: | |
| Contact resistance: | |
| Inner conductor: | ≤ 20 mΩ |
| Outer conductor: | ≤ 5 mΩ |
| Insulation resistance: | ≥ 5 GΩ |
| Withstand voltage: | 1500 Veff / 50 Hz |
| Impedance: | 50 Ω / 75 Ω |
| Return loss: | |
| Straight version: | ≥ 20 dB / 3 GHz |
| Angled version: | ≥ 17.7 dB / 3 GHz |
| Operating voltage: | ≤ 500 Veff / 50 Hz |
| Frequency range up to: | 4 GHz |
| Cable group: | Cable type: |
|---|---|
| G1 (RG58C/U) | 7806A Belden, 9907 Belden, KX 15, WCX195, RG58C/U |
| G2 (RG59B/U) | 0.6/3.7, 0.6L/3.7, 8241 Belden, 3C-2V, KX 6A, RG59B/U |
| G7 (RG316/U) | KX 22A, KX 3B, RG174/U, RG316/U, RG188A/U |
| G13 (0.4/2.5) | 0.4/2.5, 2YCY, 0.4/2.5-3.8, HF2172, TELASS50 |
| G30 (1.5/3.8) | LMR-240, H 155, 1.4/3.8AF |
| Dimensions (mm) |
| Item: | for Cable group; Cable: | Termination: | Dimensions: |
|---|---|---|---|

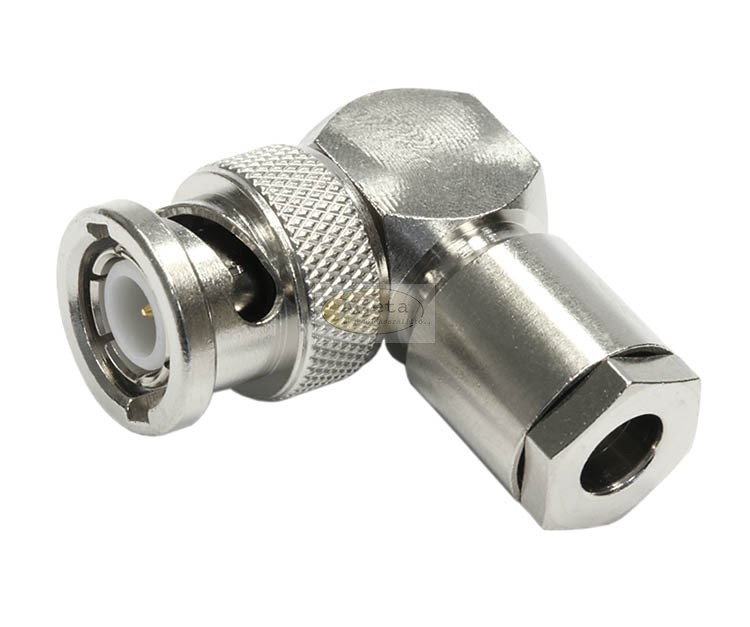

| J01000A0007 | G1 | MIL-clamp |
