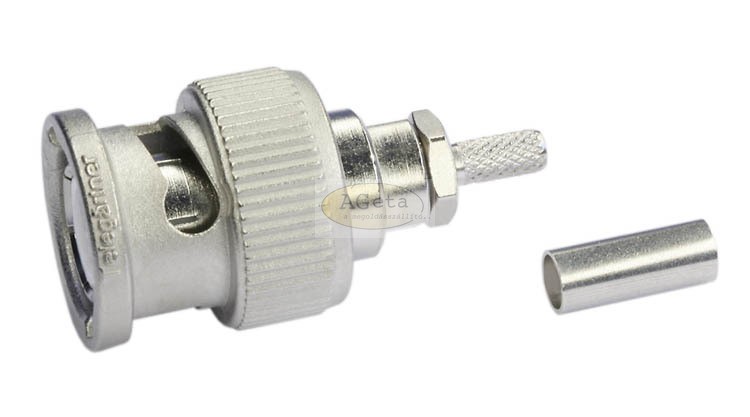

Inner conductor gold plated
More versions are also available on request!
| Specification: | |
|---|---|
| Mechanical characteristics: | |
| Operating life: | ≥ 1000 Mating cycles Professional |
| Gold plating on inner conductor: | 0.8 ľm |
| Materials: | |
| Bayonet: | Zinc diecast |
| Outer conductor: | Brass |
| Coupling spring: | Copper beryllium |
| Inner conductor: | Copper beryllium |
| Crimp ferrule: | Copper |
| Insulation: | PTFE or PE-LD |
| Finish: | |
| Bayonet: | Nickel |
| Outer conductor: | Nickel |
| Inner conductor: | Gold |
| Crimp ferrule: | Nickel |
| Electrical characteristics: | |
| Contact resistance: | |
| Inner conductor: | ≤ 20mΩ |
| Outer conductor: | ≤ 5mΩ |
| Insulation resistance: | ≥ 5GΩ |
| Withstand voltage: | 1500 Veff / 50 Hz |
| Impedance: | 50 Ω / 75 Ω |
| Operating voltage: | 500 Veff / 50 Hz |
| Frequency range up to: | 4 GHz |
| VSWR: | ≤ 1,25/1 GHz (50Ω) |
| Temperature range: | -65°C up to +165°C Professional |
| -40°C up to +75°C Basic |
| Cable group: | Cable type: |
|---|---|
| G1 (RG58C/U) | 7806A Belden, 9907 Belden, KX 15, |
| WCX195, RG58C/U | |
| G2 (RG59B/U) | 0.6/3.7, 0.6L/3.7, 8241 Belden, 3C-2V, |
| KX 6A, RG59B/U | |
| G3 (RG178B/U) | KX 21A, RG178B/U, RG196A/U |
| G4 (RG179B/U) | 0.3LS/1.7S, 1520A Belden, 1521A Belden, |
| 1522A Belden, RG179B/U, RG187A/U | |
| G5 (RG223/U) | RG223/U, RG400/U |
| G7 (RG316/U) | KX 22A, KX 3B, RG174/U, RG316/U, |
| RG188/U | |
| G13 (0.4/2.5) | 0.4/2.5, 2YCY 0.4/2.5-3.8 HF2172, TELASS50 |
| G29 (0,45/1,4) | 0.45L/1.4, G 01130 HT-03 |
| G30 (1,5/3,8) | LMR-240, H 155, 1.4/3.8AF |
| G37 (2.7/7.25) | 213CRT7 low loss, 7810A, 9913 |
| G41 (0,6/2,8-4,7) | 0.6/3.7, 1855A, 46899, FRNC 0.6/2.8AF |
| Dimensions (mm) |
| Item: | for Cable group; Cable: | Termination: | Dimensions: | Image: |
|---|---|---|---|---|
| J01000A1294 | G7, G29 | crimp / crimp | C |
