| Specification: | |
|---|---|
| Mechanical characteristics: | |
| Operating life: | ≥ 1000 Mating cycles Professional |
| Gold plating on inner conductor: | 0.8 ľm |
| Materials: | |
| Bayonet: | Zinc diecast |
| Outer conductor: | Brass |
| Coupling spring: | Copper beryllium |
| Inner conductor: | Copper beryllium |
| Crimp ferrule: | Copper |
| Insulation: | PTFE or PE-LD |
| Finish: | |
| Bayonet: | Nickel |
| Outer conductor: | Nickel |
| Inner conductor: | Gold |
| Crimp ferrule: | Nickel |
| Electrical characteristics: | |
| Contact resistance: | |
| Inner conductor: | ≤ 20mΩ |
| Outer conductor: | ≤ 5mΩ |
| Insulation resistance: | ≥ 5GΩ |
| Withstand voltage: | 1500 Veff / 50 Hz |
| Impedance: | 50 Ω / 75 Ω |
| Operating voltage: | 500 Veff / 50 Hz |
| Frequency range up to: | 4 GHz |
| VSWR: | ≤ 1,25/1 GHz (50Ω) |
| Temperature range: | -65°C up to +165°C Professional |
| -40°C up to +75°C Basic |
| Cable group: | Cable type: |
|---|---|
| G1 (RG58C/U) | 7806A Belden, 9907 Belden, KX 15, WCX195, RG58C/U |
| Dimensions (mm) |
| Item: | for Cable group; Cable: | Termination: |
|---|---|---|

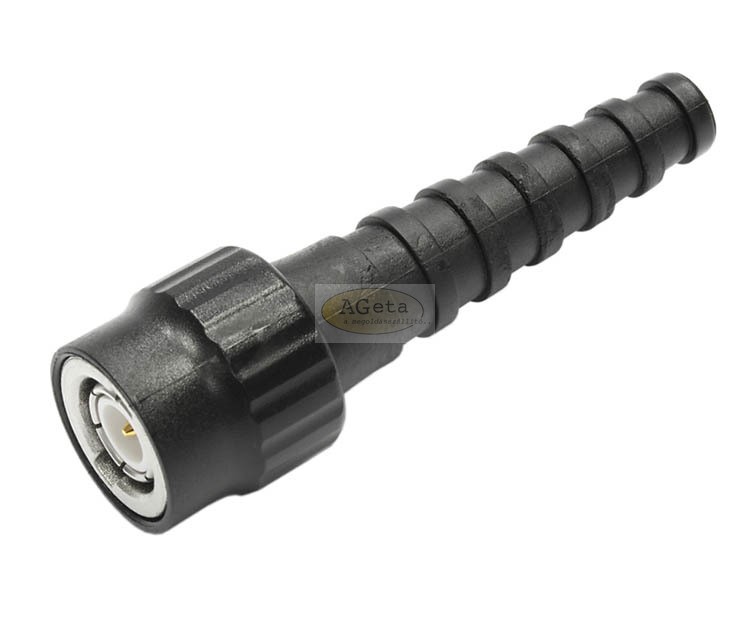

| J01000A0014 | G1 | crimp / crimp, insulated |
További információk
| Minimálisan rendelhető mennyiség | 1.0000 |
|---|---|
| Gyártó | Telegärtner |
