The term "reverse-polarised connectors" is used where, for example, a standard cable plug has a female centre contact, instead of a male centre contact. Reverse-polarised connectors are very popular in WLAN applications and are available in three differents series:
R-SMA, R-TNC and R-BNC connectors.
R-SMA, R-TNC and R-BNC connectors.
| Specification: | |
|---|---|
| Mechanical characteristics: | |
| Operating life: | ≥ 500 Mating cycles |
| Materials: | |
| Contacts: | different copper alloy |
| Serrated lock washer: | CuSn6 |
| Insulators: | PTFE |
| Gaskets: | Silicone |
| Outer conductor: | CuZn39Pb3 |
| Other metal parts: | CuZn39Pb3 |
| Item: | for Cable: | Termination: | Dimensions: |
|---|---|---|---|

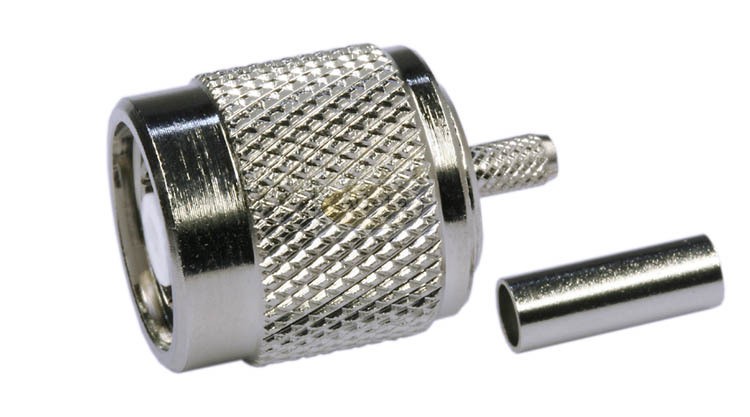

| J01010R0001 | RG 316, RG 174 | crimp |
További információk
| Minimálisan rendelhető mennyiség | 1.0000 |
|---|---|
| Gyártó | Telegärtner |
