The term "reverse-polarised connectors" is used where, for example, a standard cable plug has a female centre contact, instead of a male centre contact. Reverse-polarised connectors are very popular in WLAN applications and are available in three differents series:
R-SMA, R-TNC and R-BNC connectors.
| Operating life: | ≥ 500 Mating cycles |
| Materials: | |
| Contacts: | different copper alloy |
| Serrated lock washer: | CuSn6 |
| Insulators: | PTFE |
| Gaskets: | Silicone |
| Outer conductor: | CuZn39Pb3 |
| Other metal parts: | CuZn39Pb3 |

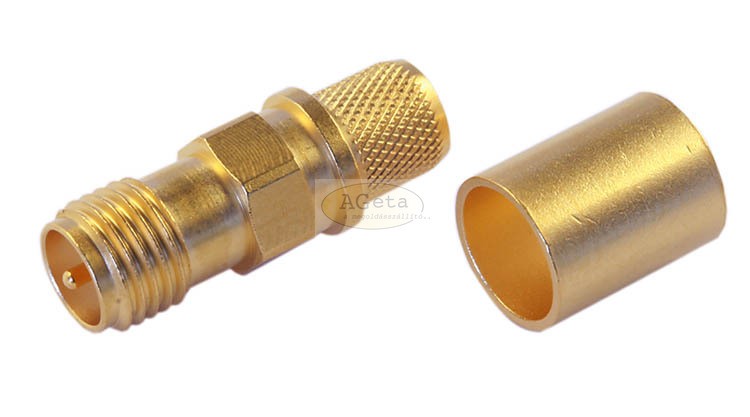

| J01151R0051 | 1.5/3.8 H155 Pope | crimp / crimp |
