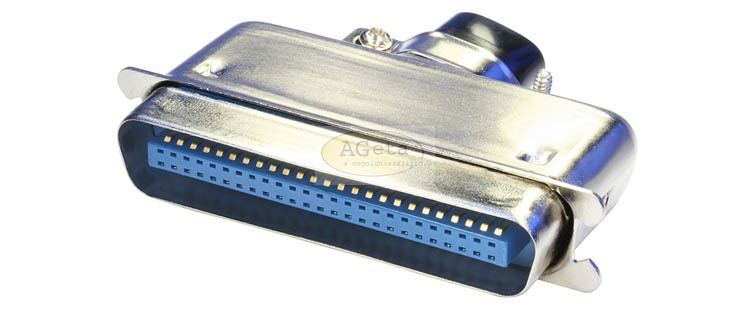

Solder termination, with strain relief
| Specification: | |
|---|---|
| Housing material: | Sheet steel nickel plated, chromated |
| Contact: | Bronze, gold plated |
| Insulator: | PBT glass filled, UL 94-V0 |
| Voltage rating: | 700 Veff |
| Current rating: | 5 A |
| Withstand voltage: | 1200 V AC / 1 Minute |
| Insulation resistance: | 1000 MΩ min. |
| Temperature range: | -55°C up to +105°C |
| Dimensions (mm) |
| Item: | No. of contacts: | A: | B: | C: | D: |
|---|---|---|---|---|---|
| CS50 | 50 | 77.40 | 68.30 | 64.40 | 24 |
