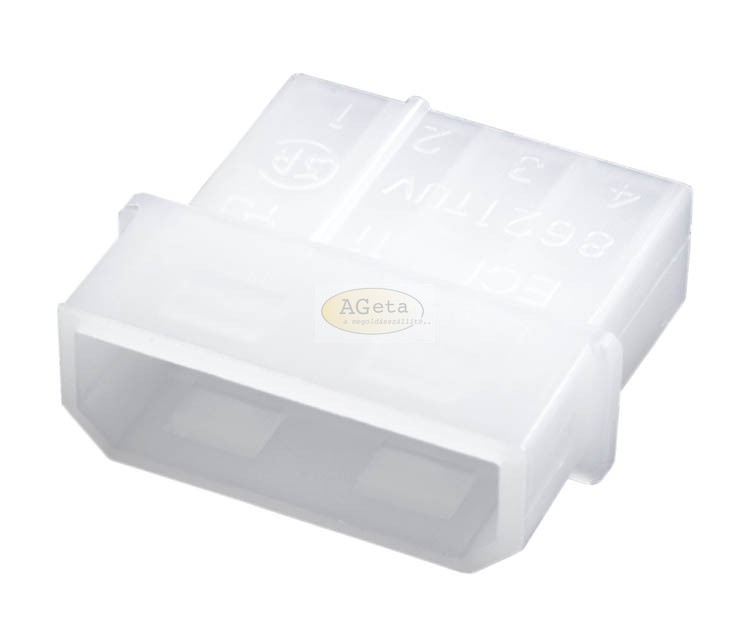

Counterpart of power plug 5¼ to manufacture Y-cables with male contacts, pitch 5.08 mm
| SPECIFICATION: | |
|---|---|
| Current rating: | 10 A |
| Voltage rating: | 250 V |
| Insulation resistance: | 1000 MΩ min. |
| Contact resistance: | 20 mΩ max. |
| Dielectric voltage: | 1500 V AC |
| Operation temperature: | -25 °C to +85 °C |
| Wire range: | AWG18-24 |
| Insulation outer diameter: | 3.7 mm max. |
| MATERIAL: | |
| Housing: | Nylon 66 white UL94V-2 |
| Contact: | Brass |
| FINISH: | |
| Contact: | Tin plated |
| TOLERANCE: | |
| .X | ± 0.30 |
| .XX | ± 0.20 |
| Item: | Description: |
|---|---|
| FK05 | Housing with four contacts |
További információk
| Minimálisan rendelhető mennyiség | 1.0000 |
|---|---|
| Gyártó | econ connect |
