Részletek
- universal input
- protections: short circuit/over load/over voltage
- enclosed case, screw terminals
- overload protection, pulsing hiccup shutdown, auto recovery
- long life 105°C electrolytic capacitors
Detailed datasheets are available on request!
| Specification: | |
|---|---|
| Input voltage: | 88 up to 264 V AC |
| 125 up to 373 V DC | |
| In-rush current: | max. 30 A |
| Leakage current: | max. 2 mA |
| Output voltage adjustment: | +10% / -5% |
| Overload protection: | 110% up to 105% |
| Dielectric strength: | |
| I/P - O/P: | 3000 V AC |
| I/P - FG: | 1500 V AC |
| O/P - FG: | 500 V AC |
| Operating temperature: | -20°C up to +70°C |
| Dimensions (LxWxH): | 78 x 51 x 28 mm |
| Weight: | 200 g |
| Item: | Output voltage.: | Rated power: | Tolerance: | Ripple: | Current: |
|---|---|---|---|---|---|

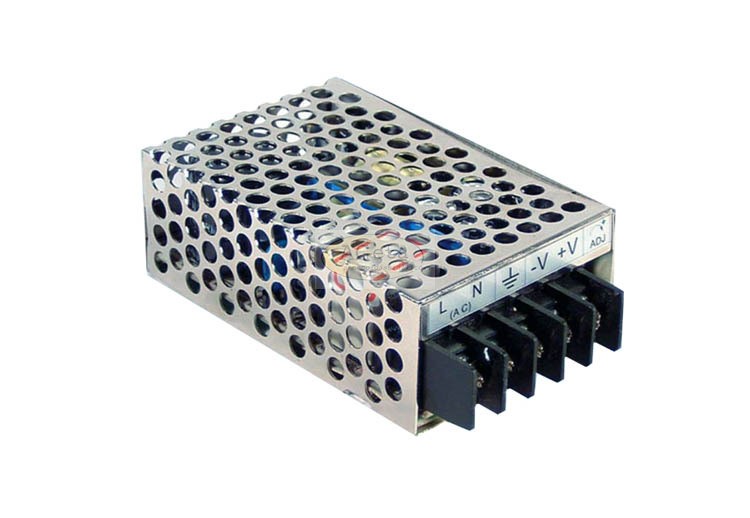

| RS25-5 | 5 Vdc | 25 W | ± 2 % | 80 mV | 0 A - 5.0 A |
További információk
| Minimálisan rendelhető mennyiség | 1.0000 |
|---|---|
| Gyártó | MEAN WELL |
