Részletek
- input voltage 180 up to 264V AC
- protections: short circuit/over load/over voltage
- overload protection, pulsing hiccup shutdown reset, auto recovery
- IP67, for indoor and outdoor installations
- fixed output voltage
Detailed datasheets are available on request!
| Specification: | |
|---|---|
| Input voltage: | 180 up to 264 V AC |
| 254 up to 370 V DC | |
| In-rush current: | max. 50 A |
| Withstand voltage: | |
| I/P - O/P: | 3000 V AC |
| Operating temperature: | -30°C up to +70°C |
| Dimensions (LxWxH): | 140 x 30 x 22 mm |
| Weight: | 175 g |
| Item: | Output voltage.: | Rated power: | Tolerance: | Ripple: | Current: |
|---|---|---|---|---|---|

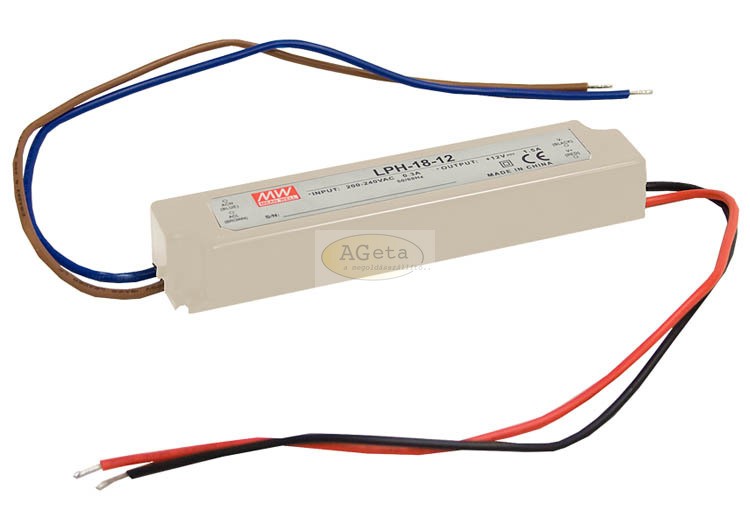

| LPH18-12 | 12 Vdc | 18 W | ± 3 % | 120 mV | 0 A - 1.5 A |
További információk
| Minimálisan rendelhető mennyiség | 1.0000 |
|---|---|
| Gyártó | MEAN WELL |
