Részletek
- universal input
- protections: short circuit/over load/over voltage
- overload protection, current limiting, auto recovery
- enclosed case, Touch-guard screw terminals
- direct assembly on DIN Rail
- built-in passive PFC function
- power-on LED display
Detailed datasheets are available on request!
| Specification: | |
|---|---|
| Input voltage: | 85 up to 264 V AC |
| 120 up to 370 V DC | |
| In-rush current: | max. 45 A |
| Leakage current: | max. 3.5 mA |
| Overload protection: | 105% up to 150% |
| Withstand voltage: | |
| I/P - O/P: | 3000 V AC |
| I/P - FG: | 1500 V AC |
| O/P - FG: | 500 V AC |
| Operating temperature: | -10°C up to +70°C |
| Dimensions (LxWxH): | 125.5 x 125.2 x 100 mm |
| Weight: | 1200 g |
| Item: | Output voltage.: | Rated power: | Tolerance: | Ripple: | Current: |
|---|---|---|---|---|---|

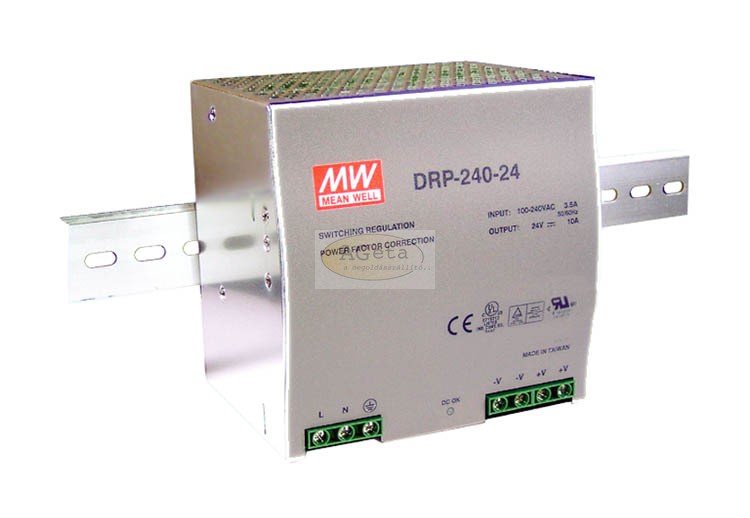

| DRP240-24 | 24 (up to 28) Vdc* | 240 W | ± 1 % | 80 mV | 0 A - 10.0 A |
További információk
| Minimálisan rendelhető mennyiség | 1.0000 |
|---|---|
| Gyártó | MEAN WELL |
