Részletek
- protections: short circuit/over load/over voltage
- overload protection, current limiting, auto recovery
- enclosed case, Touch-guard screw terminals
- direct assembly on DIN Rail
- power-on LED display
- Universal input
Detailed datasheets are available on request!
| Specification: | |
|---|---|
| Input voltage: | 85 up to 264 V AC |
| 120 up to 370 V DC | |
| In-rush current: | max. 40 A |
| Leakage current: | max. 1 mA |
| Overload protection: | 105% up to 150% |
| Withstand voltage: | |
| I/P - O/P: | 3000 V AC |
| I/P - FG: | 1500 V AC |
| O/P - FG: | 500 V AC |
| Operating temperature: | -10°C up to +60°C |
| Dimensions (LxWxH): | 55.5 x 125.2 x 100 mm |
| Weight: | 600 g |
| Item: | Output voltage.: | Rated power: | Tolerance: | Ripple: | Current: |
|---|---|---|---|---|---|

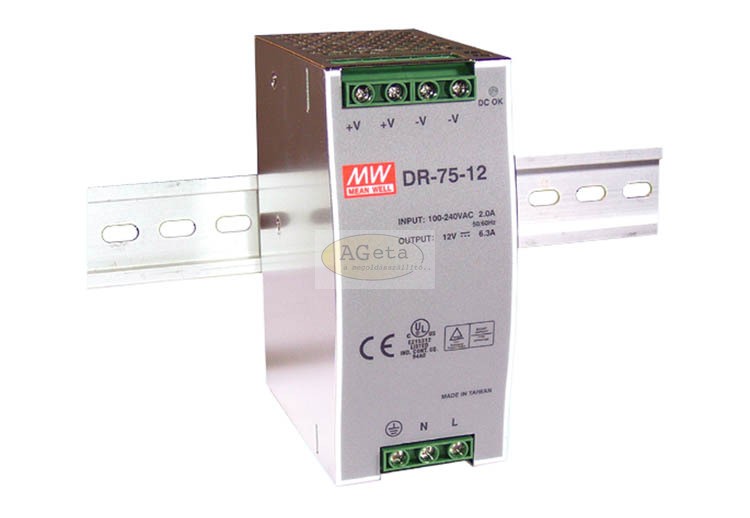

| DR75-12 | 12 (up to 14) Vdc* | 75.6 W | ± 2 % | 100 mV | 0 A - 6.3 A |
További információk
| Minimálisan rendelhető mennyiség | 1.0000 |
|---|---|
| Gyártó | MEAN WELL |
