The PISA protection modules distribute the current of a large power source to multiple lower current output channels and therefore allows for smaller wires to be used. Furthermore, it permits only so much current, on the output that the input voltage of the unit (which corresponds to the output voltage of the power supply) does not fall below 21V typically. This ensures a reliable supply voltage for sensitive equipments, such as PLCs, controls or sensors, when they are connected directly to the same power supply as the PISA protection module.
- protection module with one input and four outputs
- ensures sufficient supply voltage (21V) for critical loads
- protects small cable sizes against overload
- integrated control for remote monitoring and operation
- hassle free turn-on of loads with large input capacitors
- 3 YEARS WARRANTY
Detailed datasheets are available on request!| Input voltage: | 24 V |
| Eingangsstrom: | 43 mA |
| Quantity the outputs: | 4 |
| Terminal: | Schraubklemmleiste |
| Temperature range: | -25°C up to +70°C |
| -40°C up to +85°C |
| |
| Dimensions: | 45 x 75 x 91 mm |
| (width x height x depth) | |
| Weight: | 140 g |

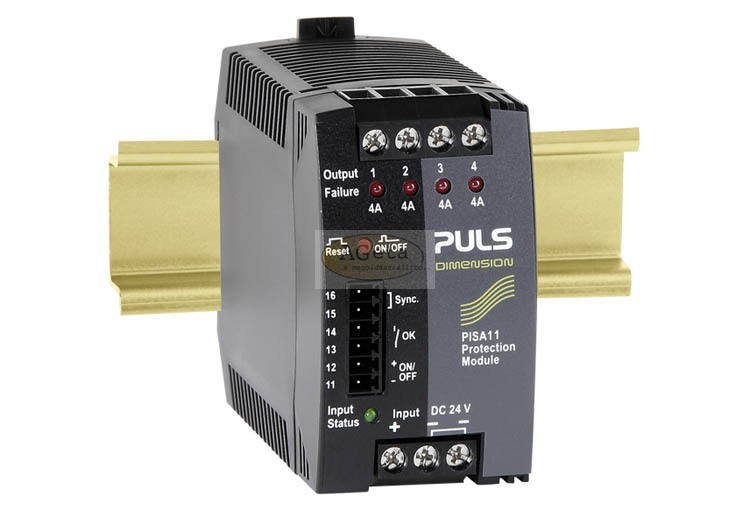

| PISA11404 | 20 A | 101 mV | 4 x 4A |
