Részletek
- open frame housing with integrated heatsink
- overload protection, power limiting, auto recovery
- for direct PCB mounting
- wide input voltage range 4:1
- built-in remote On/Off control
- DC decoupling of input and output
- input/output insulation 1500V
- regulated output voltage
- short-circuit proof
Detailed datasheets are available on request!
| Specification: | |
|---|---|
| Over load protection: | > 105% |
| Withstand voltage: | 1500 V DC |
| Working temperature: | -25°C up to +70°C |
| Dimensions (L x W x H): | 50.8 x 38.1 x 13.33 mm |
| Weight: | 30 g |
| Item: | Eingangssp.: | Ausgangssp.: | Efficiency: | Ripple: | Current: |
|---|---|---|---|---|---|

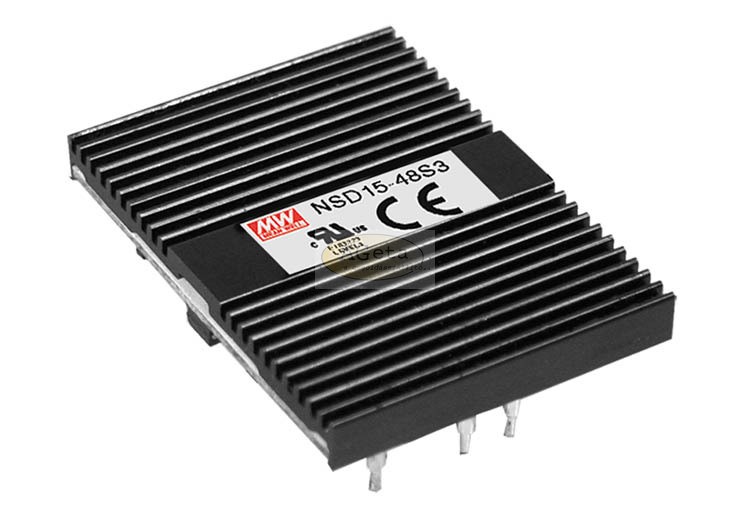

| NSD15-48S3 | 18 - 72 Vdc | ± 3.3 Vdc | 77 % | 100 mV | 3750 mA |
További információk
| Minimálisan rendelhető mennyiség | 1.0000 |
|---|---|
| Gyártó | MEAN WELL |
