These splitters route the audio and video signals from an input source to up to 4 or 8 Cat.5 outputs thus enabling signal transfer at a distance of up to 150 m.
- for use with repeater VB552
- cascadable to 3 levels
- features serial interface RS-232
Delivered including cable for connecting the source, power adaptor and one repeater VB552 including accessories.
| Terminal Input: | |
| Video: | 15 pin DSUB-HD plug (blue) |
| Audio: | 3.5mm stereo Jack (green) |
| |
| Terminal Output: | |
| Video: | 15 pin DSUB-HD jack (blue) |
| Audio: | 3.5mm stereo Jack (green) |
| |
| other Terminals: | |
| Verbindungen: | 8P8C Modular Jacks |
| Power supply: | DC-socket |
| RS-232: | 9 pin DSUB jack (black) |
| 9 pin DSUB plug (black) |
| |
| max. Resolution: | 1600 x 1200 |
| max. Cable length: | 150 m |
| Housing: | metal |

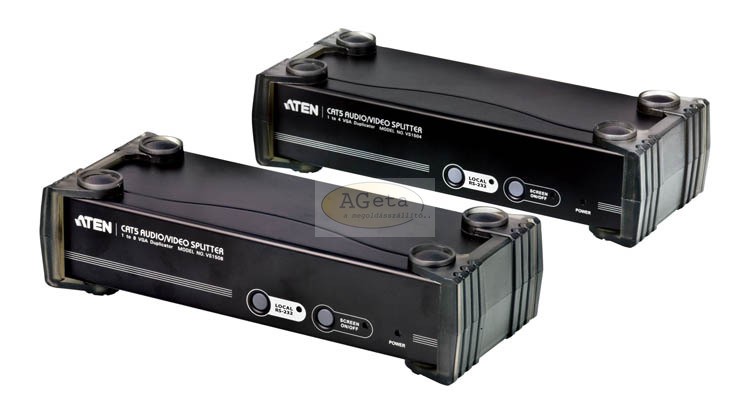

| VS1508 | 8 Cat.5 outputs | VS1508-AT-G |
