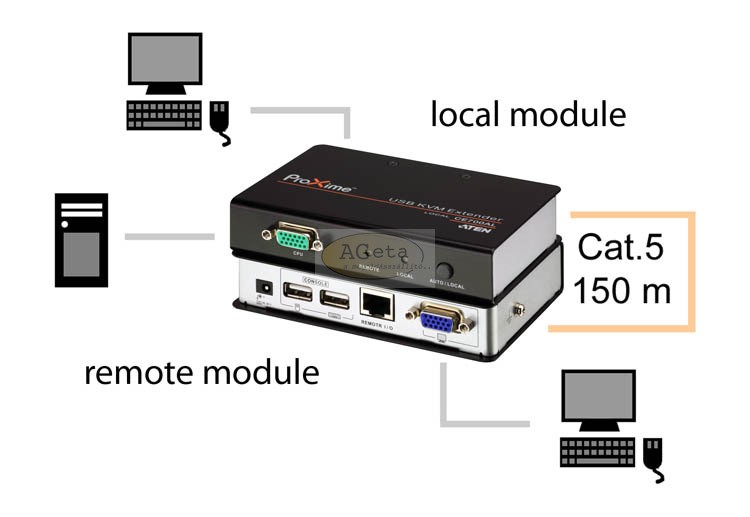

These sets allow for controlling a computer or KVM switch by two keyboards, monitors and mouses, one of each is local and one is connected to the remote module. All data is transferred between the local and the remote module by just one single economic Cat.5 cable - at a distance of up to 150 m.
- built-in ESD and surge protection
- delivered including power supplies, PC connection cable, grounding wires and rack mount kit
| Terminal Consoles: | |
| keyboard: | USB A jack (white) |
| Mouse: | USB A jack (white) |
| Video: | 15 pin DSUB-HD jack (blue) |
| |
| Terminal PC: | |
| Keyboard / Mouse / Video: | 17pol. DSUB-HD jack (green) |
| |
| other Terminals: | |
| Connection: | 8P8C Modular Jack |
| Power supply: | DC-socket |
| |
| max. Resolution: | 1920 x 1200 (30 m) |
| 1600 x 1200 (100 m) |
| 1280 x 1024 (150 m) |
| max. Cable length: | 150 m over Cat.5 |
| Housing: | metal |
| Dimensions: | 125 x 82 x 25 mm (local) |
| 125 x 82 x 25 mm (remote) |
| Weight: | 320 g (local) |
| 310 g (remote) |
| CE700LR | Set, consisting of local and remote module | CE700A-AT-G |
