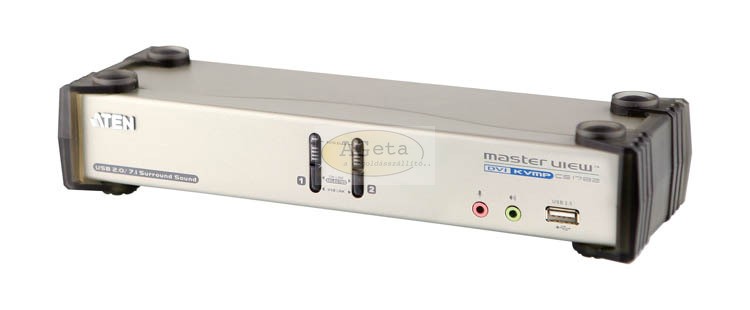

This switch allows for controlling 2 or 4 computers by one USB console with DVI display.
- With 7.1 channel surround audio (CS1782 only)
- Supports MS Windows, Linux, Mac and Sun OS
- Fully compliant with USB 2.0 and DVI specifications
- Independent switching of the KVM and Audio focus as well as the USB peripheral devices via front panel pushbuttons and hotkeys
Delivered including power supply, firmware upgrade cable (1.8 m) and USB KVM cables.
| Terminal Console: | |
| Keyboard: | USB A jack (black) |
| Mouse: | USB A jack (black) |
| Monitor: | 29 pin DVI A/D jack (white) |
| Loudspeaker: | 3.5mm stereo Jack (green) |
| Microphone: | 3.5mm stereo Jack (pink) |
| |
| Terminals PCs: | |
| Keyboard / Mouse: | USB B jack (white) |
| Monitor: | 29 pin DVI A/D jack (white) |
| Loudspeaker: | 3.5mm stereo Jack (green) |
| Microphone: | 3.5mm stereo Jack (pink) |
| |
| other Terminals: | |
| Peripheral devices: | 2 x USB A jack (white) |
| Firmware upgrade: | 3.5mm stereo Jack (black) |
| Power supply: | DC-socket (black) |
| |
| max. Resolution: | 2560 x 1600 (60 Hz) |
| 3840 x 2400 (13 Hz) |
| Housing: | metal |
| CS1782 | 1 User at 2 PCs | 270 x 87 x 55 mm | 940 g | 2 x 1.8 m |
