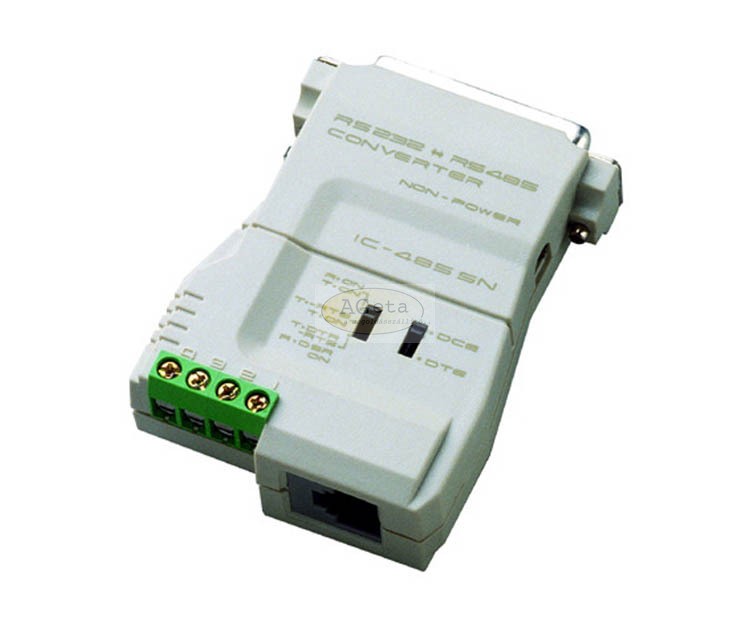

This converter allows for the bi-directional connection between RS-232 and RS-485 / RS-422 interfaces.
- Baud rates of up to 100 kbps at a distance of up to 1200 m
- Data transmission controlled by the RTS signal
- DCE / DTE selectable
- Point to point or multidrop selection
- Half duplex or full duplex
| Specification: | |
|---|---|
| Terminals: | |
| RS-232: | 25 pin DSUB Jack |
| RS-485 / RS-422: | 4x screw terminal |
| 6P4C Modular Jack | |
| Switch: | |
| Switch 1: | DCE / DTE |
| Switch 2: | TxON, RxON / |
| TxRTS, RxON / | |
| TxDTR/RTS, RxDSR/ON | |
| Housing: | plastic |
| Dimensions: | 54 x 75 x 19 mm |
| Weight: | 60 g |
| Item: | ATEN Item: |
|---|---|
| BIC01N | IC485SN-AT |
További információk
| Minimálisan rendelhető mennyiség | 1.0000 |
|---|---|
| Gyártó | ATEN |
