Részletek

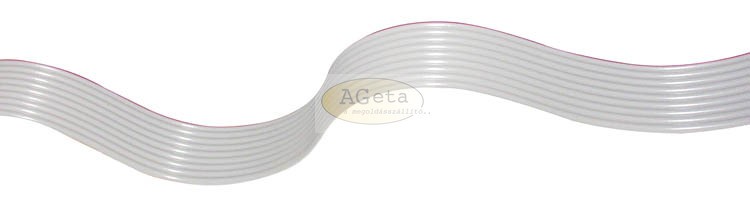

Pitch: 1.27 mm
minimum order quantity: 1 PU = 500 m (1640 ft) or 150 m (492 ft) reel
| Specification: | |
|---|---|
| Strands layout: | copper, tin plated |
| Operating voltage: | 300 V |
| Withstand voltage: | 2000 Veff |
| Conductor resistance: | 240 Ω / km |
| Capacitance at 1 KHz: | 36 pF / m |
| Inductance: | 0.8 mH / m |
| Impedance: | 110 Ω |
| Temperature range: | -20°C up to +105°C |
| UL style: | 2651 |
| Item: | No. of contacts: | |
|---|---|---|
| 10GR500M | 10 | 500 m |
További információk
| Minimálisan rendelhető mennyiség | 500.0000 |
|---|---|
| Gyártó | N/A |
