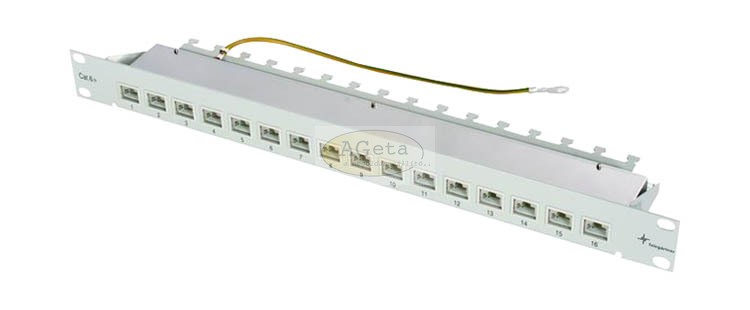

19" rack mount unit 1 HU with 16 or 24 RJ45 jacks assembled on one common PCB. 2-connector channel class EA according to ISO/IEC 11801 Edition 2 Appendix 1 as well as Cat.6A according to TIA/EIA 568-B.2-10 draft 7. Suitable for at least 750 connecting cycles with RJ11/12/45 plugs. Suitable for data transmission ratios up to 10 Gigabit Ethernet according to IEEE 802.3an. Suitable for the 8 wire transmission of all presently known data networks:
10 Base T(Ethernet), Token Ring, 100 Base T(Fast Ethernet), 1000 Base T Gigabit Ethernet, 100 Base VG, TP-PMD (FDDI by Cu), ATM(155Mbit/s). Shielded types EMV-certified according to EN 50081-2 and 50082-2 for industrial applications. PCB mounted horizontally and insulated against the frame, therefore suitable for intermediate distribution frames as well as grounding in main distribution frames using the enclosed earth connection cable. Housing is made of steel and powder-laminated in light grey (RAL 7035), the cover is made of stainless steel.
Enables "Mix & Match" with other manufacturers´ RJ45 connectors.
| Item: | Description: | Telegärtner item-no.: |
|---|---|---|
| MVR16HS | 16 x RJ45 | J02022A0050 |
További információk
| Minimálisan rendelhető mennyiség | 1.0000 |
|---|---|
| Gyártó | Telegärtner |
