Részletek

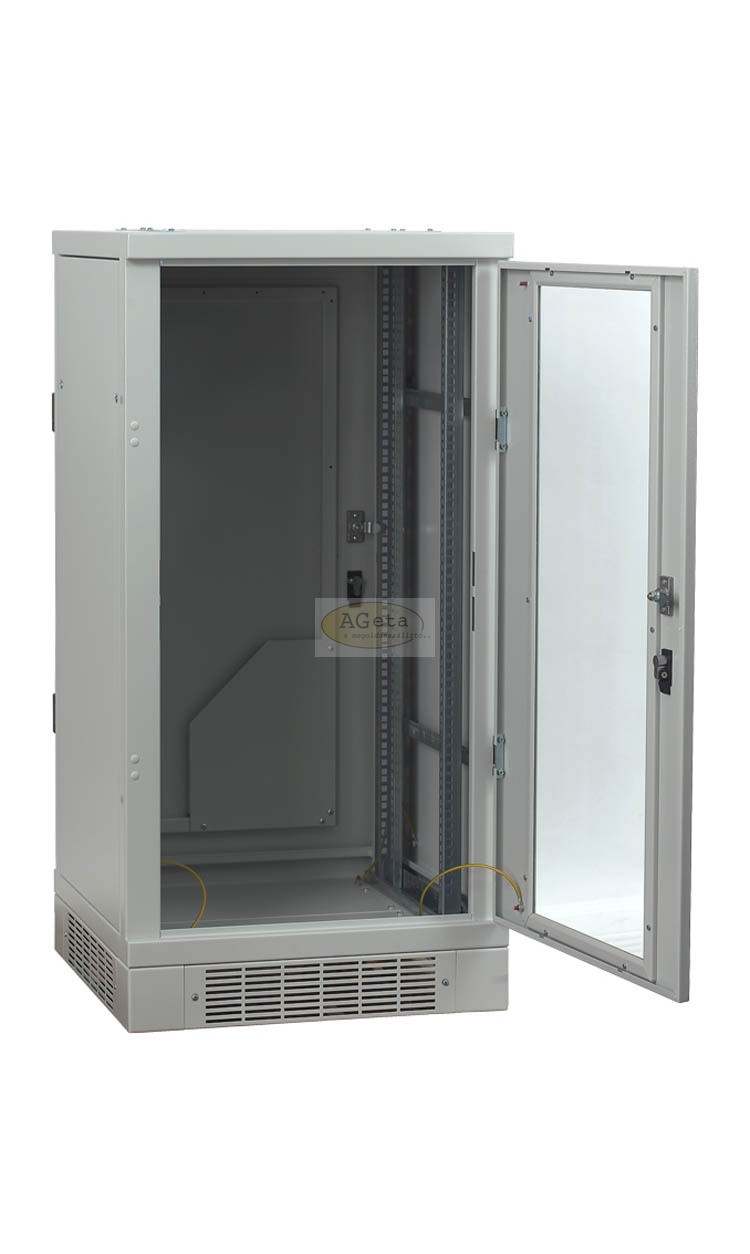

- welded, powder-coated sheet steel cabinet
- RAL 7035 (light gray)
- 19" level in front and rear (movable)
- 100 mm plinth, passive ventilated, with demountable plates, 4 adjustable feet
- front door with 4 mm tempered safety glass (parasol gray)
- rear door with document case
- 1-point locking and swivel lever handle for profile half-cylinder, double-bit insert incl.
- bottom and top plate with masked notches, top plate with brush strip
- removable side plates, screwed
- bayable without additional parts
- 2 cable strain reliefs per left and right side
- data cabinet completly grounded
- protection class: IP 40
- static load capacity: 500 kg
| Item: | Version: | Dimensions: |
|---|---|---|
| SGB19H22 | 19", 22 RU | 600 x 1100 x 600 mm |
További információk
| Minimálisan rendelhető mennyiség | 1.0000 |
|---|---|
| Gyártó | CobiNet |
