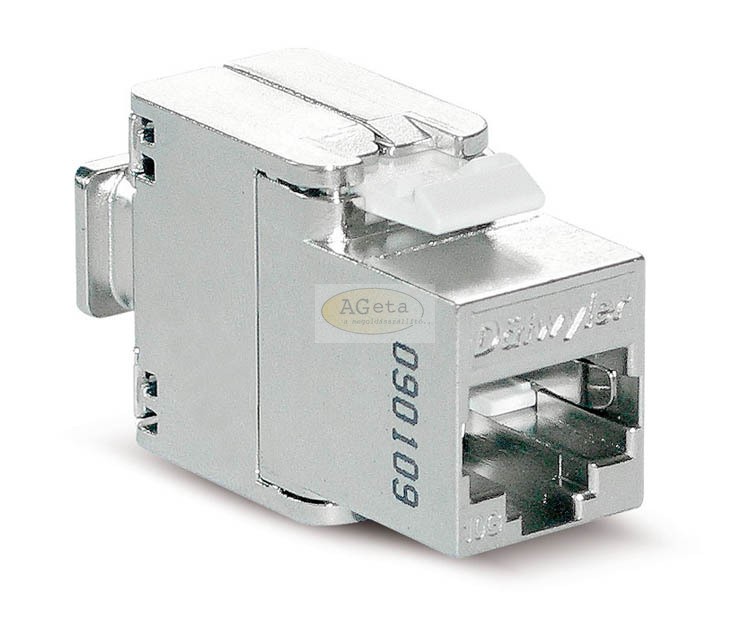

The Module KS-TS 6 1/8 is a Module which is designed to shorten the termination time and reduce installation labors.
A datasheet with all technical information is available on demand!
- Solid build zinc alloy connector housing with snap-in mounting for installation into Keystone-Solution panels and outlets
- Spring wire with phosphor bronze alloy plated with gold
- For wire connecting a wire-manager is used in combination with 2 integrated moveable housing wings for tool-less IDC connecting
- The complete metal shield ensures a durable fully shielded environment, protects the module and guarantees stable electric performance
- Strain relief via cable tie
- Only for cutting the wires a plane wire cutter is necessary
- The wiring is re-usable.
- It is suitable for transmission of digital an analogue voice, video and data signals, that are all solutions according to Class E respectively Class D
- In connection with data cables Cat.7 all applications are useable up to Class EA, that is 10 Gigabit Ethernet in compliance with IEEE 802.3an
A datasheet with all technical information is available on demand!
| Item: | Categorie: | for plug: |
|---|---|---|
| KSTS6 | Cat. 6 Class EA | RJ45 |
További információk
| Minimálisan rendelhető mennyiség | 1.0000 |
|---|---|
| Gyártó | Dätwyler |
