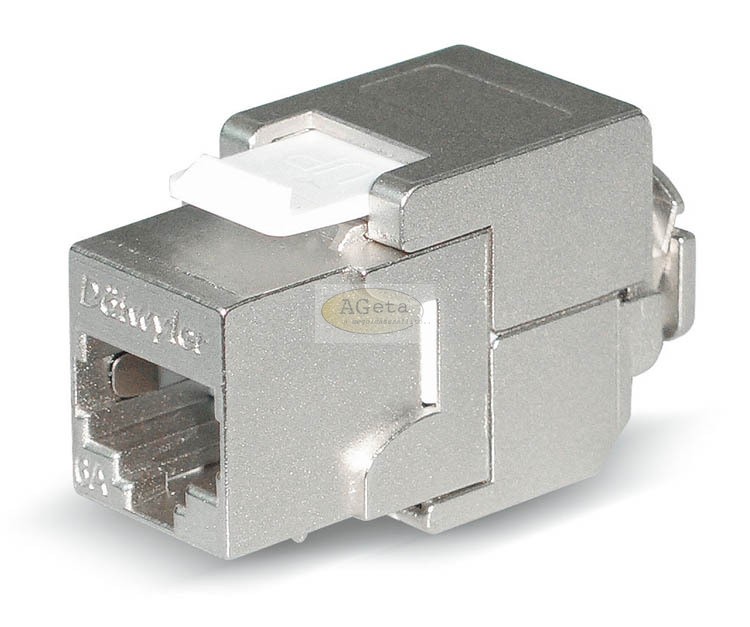

The Module KS-TS 6 1/8 is a Module which is designed to shorten the termination time and reduce installation labors.
A datasheet with all technical information is available on demand!
- Solid build zinc alloy connector housing with snap-in mounting for installation into Keystone-Solution panels and outlets
- Spring wire with phosphor bronze alloy plated with gold
- For wire connecting a wire-manager is used in combination with 2 integrated moveable housing wings for tool-less IDC connecting
- The complete metal shield ensures a durable fully shielded environment, protects the module and guarantees stable electric performance
- Strain relief via cable tie
- Only for cutting the wires a plane wire cutter is necessary
- The wiring is re-usable.
- Spezified according to the connecting hardware standard TIA/EIA 568-B.2-10: 2008 for augmented Cat.6 (Cat 6A) up to 500 MHz
- In connection with data cables Cat.7 all international Channel requirements for class EA according to ISO/IEC 11801:2002/Amd.1:2008 are fulfilled
- Therefore all applications up to class EA are safe usable, such as 10 Gigabit Ethernet in compliance with IEEE 802.3an.
- If wanted, an equipotential bondig cable can be connected to a groundig bar directly on the module
A datasheet with all technical information is available on demand!
| Item: | Categorie: | for plug: |
|---|---|---|
| KST6A | Cat. 6A Class EA | RJ45 |
További információk
| Minimálisan rendelhető mennyiség | 1.0000 |
|---|---|
| Gyártó | Dätwyler |
