Részletek
- Transmisson Characteristics acc. to ISO/IEC 11801:2002 EN 60603-7-5 (RJ45 shielded, 250 MHz) TIA/EIA-568-B.2-1
- 360 degrees shielding contact and strain relief by means of one captive screw clamp for the exterior cable jacket and shielding
- Can be wired up from all directions, in 8x45° steps; enables reduction in stock diversity
- Either horizontal or vertical installation in the cable duct as a result of variable cable inlet
- Type offers low installtion depth; problem-free installation in floor tanks as a result of cable inlet form the side within the subfloor mounting box
- Option of plug-in ground connection at all four corners
- Can be combined with covers for a wide variety of switching programs
- Simple lead presorting guarantees leads will be laid without damage and good transmission performance
| Item: | Description: | Version: | Telgärtner-Art.-Nr.: |
|---|---|---|---|

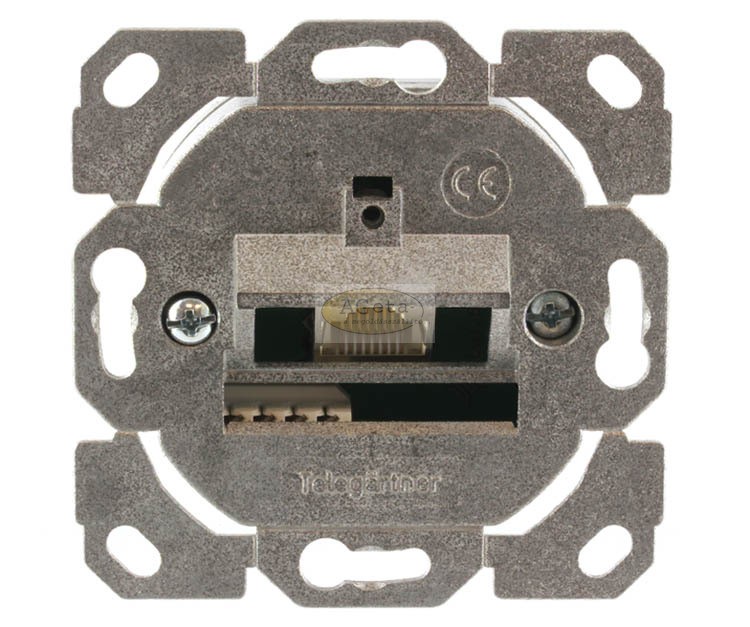

| A45L8 | AMJ45 8 UP/50 Cat.5e | 1x, without face plate | J00020A0420 |
További információk
| Minimálisan rendelhető mennyiség | 1.0000 |
|---|---|
| Gyártó | Telegärtner |
