Részletek

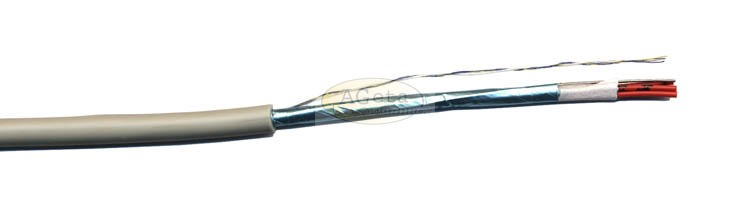

Communication cable in data transmission technology suitable for ranges of up to 120 m.
minimum order quantity: 1 PU = 100 m ring
| Specification: | |
|---|---|
| Conductor resistance: | ≤ 130 Ω / km |
| Insulation resistance: | ≥ 5 GΩ x km |
| Operating capacity: | ≤ 52 nF / km (bei 800 Hz) |
| Operating voltage: | 300 V (not suitable for mains supply) |
| Withstand voltage: | 800 V, 1 min. (wire - wire) |
| 2000 V, 1 min. (wire - shield) | |
| Temperature range: | -5°C up to +50°C (dynamic) |
| -30°C up to +70°C (static) |
| Item: | Layout: | Colour: | Max. Transfer rate: |
|---|---|---|---|
| J2Y4X2X06 | 4 x 2 x 0.6 mm | grey, RAL 7032 | 10 Mbps |
További információk
| Minimálisan rendelhető mennyiség | 100.0000 |
|---|---|
| Gyártó | VOKA Vogtländisches Kabelwerk |
