Részletek

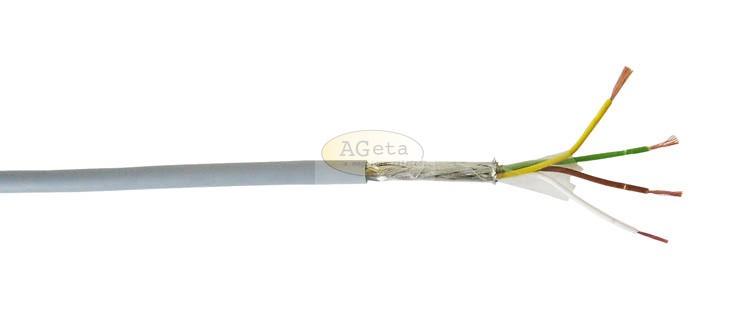

Shielded connection line for measurement, control and regulation equipment.
stranded conductor: 0.14 mm² (18 x 0.10 mm)
Sheath: PVC, grey
minimum order quantity: 1 PU = 100 m ring
Other wire numbers available on demand!
| Specification: | |
|---|---|
| Conductor resistance: | ≤ 138 Ω / km |
| Insulation resistance | ≥ 100 MΩ x km |
| Operating voltage: | 350 V (not suitable for mains supply) |
| Withstand voltage: | 800 V |
| Temperature range: | -5°C up to +50°C (dynamic) |
| -30°C up to +80°C (static) |
| Item: | Cross section: |
|---|---|
| LIYCY4 | 4 x 0.14 mm² |
További információk
| Minimálisan rendelhető mennyiség | 100.0000 |
|---|---|
| Gyártó | VOKA Vogtländisches Kabelwerk |
