for connecting sensors and actors.
| Specification: | |
|---|---|
| Conductor: | bare stranded copper wire |
| Conductor insulation: | PVC according to VDE 0207 part 4 |
| Colour sequence: | brown, blue, black (3 wire) |
| brown, blue, black, white (4 wire) | |
| Twisting: | cores in layers |
| Sheath: | S-PVC according to VDE 0207 part 5 |
| self-extinguishing and flame retardant according to IEC 60332-1 | |
| Sheath colour: | black, RAL 9005 |
| Operating voltage: | 900 V |
| Test voltage: | 2500 V |
| Temperature range: | -50°C up to +70°C (static) |
| -30°C up to +70°C (dynamic) |
| Item: | Cross section: | Strands layout: | Outer diameter: | PU: |
|---|---|---|---|---|

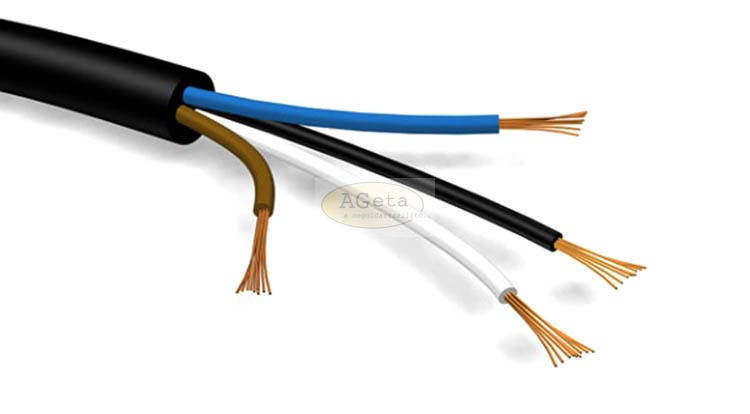

| SEN3X034 | 3 x 0.34 mm² | 42 x 0.10 mm | 5.0 mm | 100 m ring |
További információk
| Minimálisan rendelhető mennyiség | 100.0000 |
|---|---|
| Gyártó | kabeltronik |
