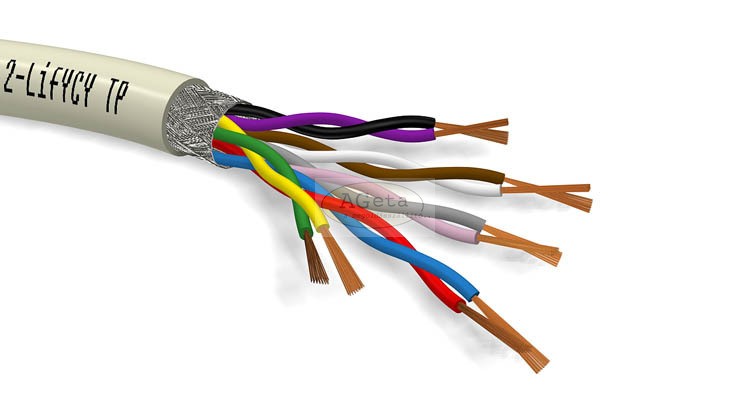

suitable for all fields of electronics, measuring and control engineering. The twisted-pair structure provides for increased cross-talk attenuation. The overall shield protects from electrical interference factors.
| Specification: | |
|---|---|
| Conductor: | Cu conductor stranded, blank |
| Conductor insulation: | PVC according to VDE 0207 |
| Colour sequence: | DIN 47100 |
| Shield: | Cu braid, tin plated |
| Sheath: | PVC according to VDE 0207 |
| Sheath colour: | grey, RAL 7032 |
| Operating voltage: | 300 V |
| Withstand voltage: | 500 V |
| Temperature range: | -25°C up to +70°C (static) |
| -5°C up to +70°C (dynamic) |
| Item: | Cross section: | Strands layout: | Outer diameter: | PU: |
|---|---|---|---|---|
| 2LIFYCY4X2 | 4 x 2 x 0.20 mm² | 102 x 0.05 mm | 7.0 mm | 100 m ring |
További információk
| Minimálisan rendelhető mennyiség | 100.0000 |
|---|---|
| Gyártó | kabeltronik |
