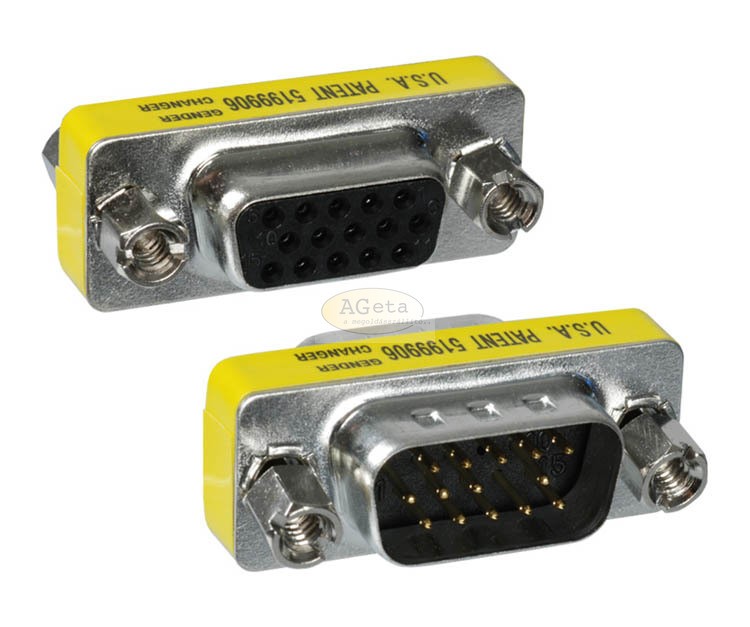

These miniature gender changers allow for connecting incompatible cables, thus preventing modifications or changes. SUB-D connectors, assignment 1:1.
high density connectors, e.g. for SVGA
high density connectors, e.g. for SVGA
| Specification: | |
|---|---|
| Contact plating: | gold flash |
| Voltage: | 300 VAC |
| Withstand voltage: | 1000 VAC |
| Current rating: | 5 A |
| Contact resistance: | 10 mΩ max. |
| Insulation resistance: | 500 MΩ min. |
| Dimensions (mm): | 15 pin: |
|---|---|
| A: | 31.0 mm |
| B: | 24.9 mm |
| C: | 16.9 mm |
| D: | 18.0 mm |
| E: | 6.0 mm |
| Item: | Description: | No. of contacts: |
|---|---|---|
| MGC15HD/FF | jack - jack | 15 HD |
További információk
| Minimálisan rendelhető mennyiség | 1.0000 |
|---|---|
| Gyártó | N/A |
