suitable for the assembly of VGA/SVGA video and data cables according to UL2919
outer shielding in addition to individual shieldings of the AWG24/7 wires
minimum order quantity: 1 PU = 100 m reel
| Specification: | |
|---|---|
| Conductor layout: | 3 x AWG24/7 |
| 4 x AWG28/7 | |
| Colour sequence: | AWG24/7 according to UL1762 |
| (red, green, blue) | |
| AWG28/7 according to UL1061 | |
| (black, brown, yellow, orange) | |
| Operating voltage: | 30 VDC |
| max. Temperature: | 80°C |
| Item: | Description: | Sheath: | Colour: |
|---|---|---|---|

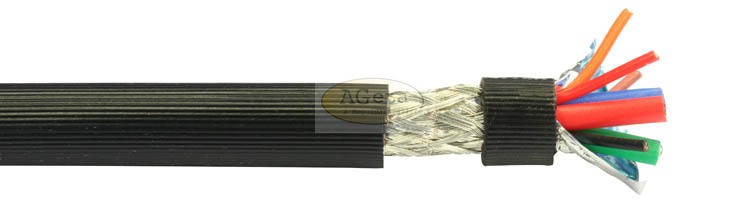

| SVGA2919 | VGA/SVGA Cable | PVC | black |
