Részletek
- Housing size 30 x 30 x 15 mm
- Diffuse sensors
- Operating distance 1200 mm
| Specification: | |
|---|---|
| Maximum ripple: | ≤ 20 % |
| Voltage drop: | ≤ 2.0 V |
| Hysteresis: | 10 % Sr typ. |
| max. Ambient light: | |
| Halogen: | 5000 Lux |
| Sun: | 10000 Lux |
| Short-circuit protection: | built-in |
| Polarity reversal protection: | built-in |
| Power on reset: | built-in |
| Cable types: | see Connectivity |
| Specification: | |
|---|---|
| Housing material: | PBTP (Crastin) |
| Protection class: | IP 67 |
| max. Switching frequency: | 1000 Hz |
| Switching times (↑ and ↓): | 0.5 ms |
| Operating voltage: | 10 V up to 36 V DC |
| Temperature range: | -25 °C up to +55 °C |
| Output current: | ≤ 200 mA |
| No-load supply current: | ≤ 20 mA |
| Standard target: | 200 x 200 mm white |
| Emitter: | IR-LED 880 nm |
| EMC protection: | |
| IEC 60947-5-2 (7.2.3.1) | 5 kV |
| IEC 61000-4-2 | Level 2 |
| IEC 61000-4-3 | Level 3 |
| IEC 61000-4-4 | Level 3 |
| Item: | Connection: | Type: | Contrinex item: |
|---|---|---|---|

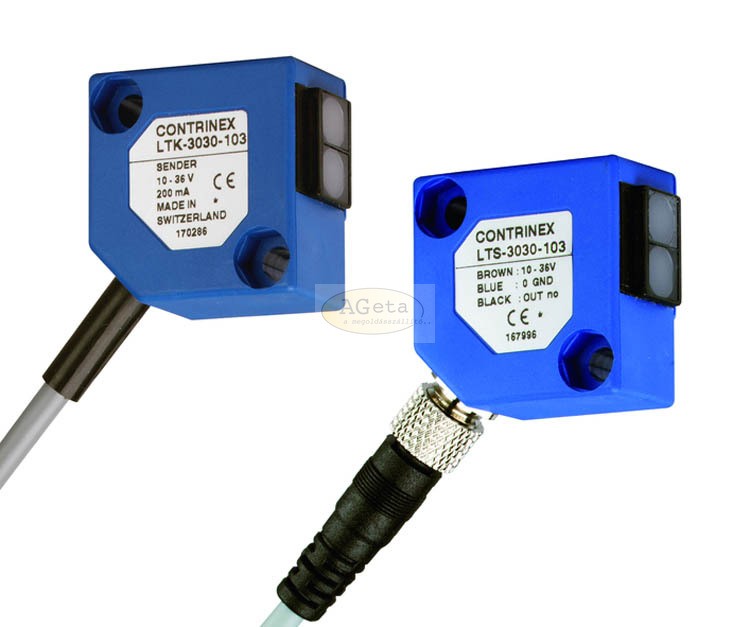

| LTK3030103 | PVC cable Type 2a | PNP changeover | LTK-3030-103 |
További információk
| Minimálisan rendelhető mennyiség | 1.0000 |
|---|---|
| Gyártó | CONTRINEX |
