Részletek
- Housing size 40 x 50 x 15 mm
- Colour sensors(diffuse)
- 3 colour channels (light-ON) with teach-in
- 5 switching tolerance levels
- Operating range 30 mm up to 40 mm
| Specification: | |
|---|---|
| Maximum ripple: | ≤ 20 % |
| Voltage drop: | ≤ 2.0 V |
| Hysteresis: | 10 % Sr typ. |
| max. Ambient light: | |
| Halogen: | 5000 Lux |
| Sun: | 10000 Lux |
| Short-circuit protection: | built-in |
| Polarity reversal protection: | built-in |
| Power on reset: | built-in |
| Cable types: | see Connectivity |
| Specification: | |
|---|---|
| Housing material: | PBTP |
| Positioning tolerance: | ± 5 mm (Tol. 3) |
| Beam diameter: | 4 mm (at 35 mm) |
| Protection class: | IP 67 |
| max. Switching frequency: | 4000 Hz (Tol. 3, 4, 5) |
| 1250 Hz (Tol. 1, 2) | |
| Switching times (↑ and ↓): | 0.2 ms (Tol. 3, 4, 5) |
| 0.4 ms (Tol. 1, 2) | |
| Operating voltage: | 10 V up to 30 V DC |
| Temperature range: | -5 °C up to +55 °C |
| Output current: | ≤ 200 mA |
| No-load supply current: | ≤ 35 mA |
| Emitter: | LED white |
| EMC protection: | |
| IEC 60947-5-2 (7.2.3.1) | 5 kV |
| IEC 61000-4-2 | Level 2 |
| IEC 61000-4-3 | Level 3 |
| IEC 61000-4-4 | Level 3 |
| IEC 61000-4-6 | Level 2 |
| Item: | Connection: | Type: | Contrinex item: |
|---|---|---|---|

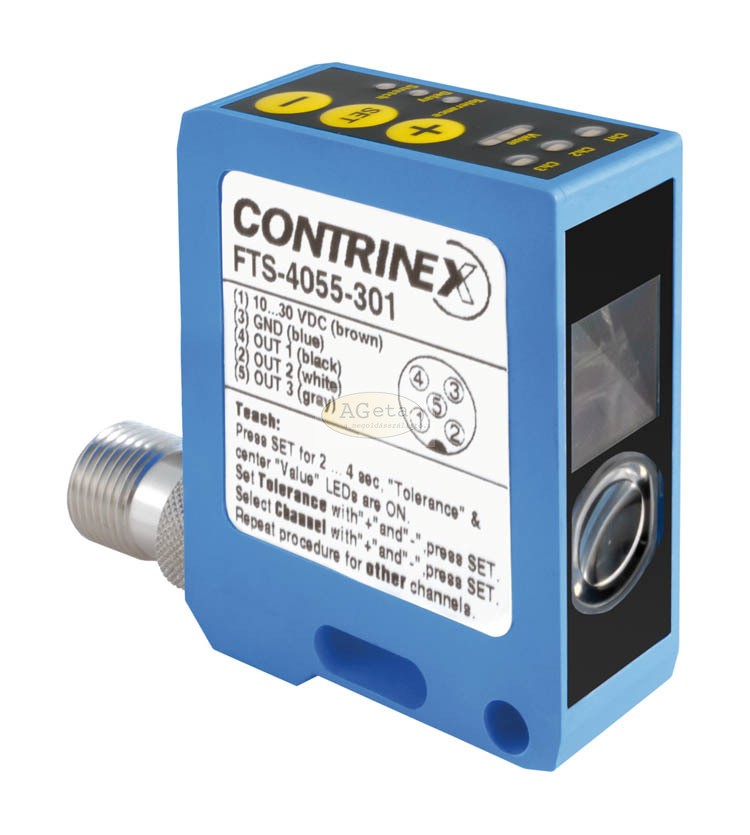

| FTS4055303 | plug S12 | PNP colour sensor | FTS-4055-303 |
További információk
| Minimálisan rendelhető mennyiség | 1.0000 |
|---|---|
| Gyártó | CONTRINEX |
