OLED displays with 8-bit and 4-bit controller
- integrated controller (HD44780-like)
- input 4- or 8-bit data-bus, 3 control-wires(R/W, E, RS)
- ASCII-char set and special symbols stored in character-ROM
- up to 8 characters (ASCII-code 0..7) can be definied by user
- different functions with one instruction: clear display, cursor home, cursor on/off, blinking cursor, shift display, shift cursor, read/write display data, etc.
- simple supply from 3.3 V up to 5 V
- low power consumption of 15 mA up to 50 mA
- operating temperature from -40°C up to +80°C
| Item: | No. of chars: | Char height: | Dimensions: | Colour: | EA item: |
|---|---|---|---|---|---|

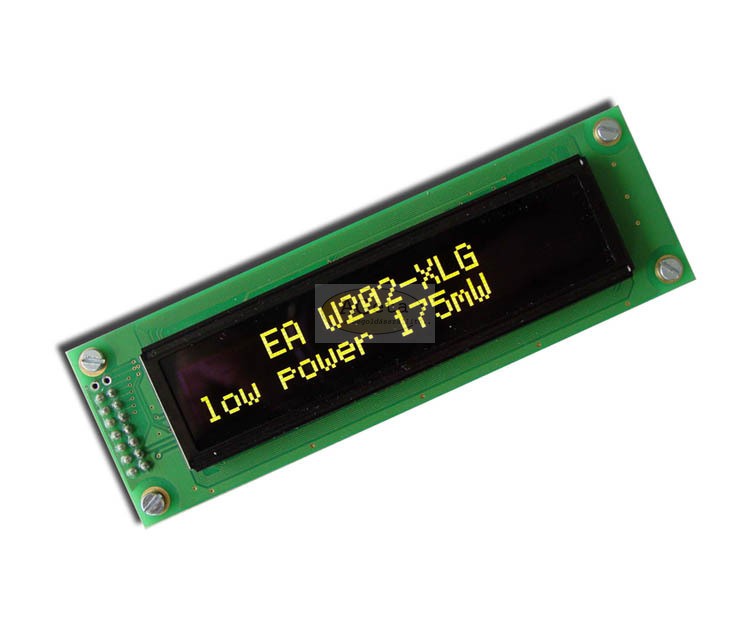

| OLED202X5GG | 2 x 20 | 5.5 | 116 x 37 mm | chartreuse | W202-XLG |
További információk
| Minimálisan rendelhető mennyiség | 1.0000 |
|---|---|
| Gyártó | ELECTRONIC ASSEMBLY |
